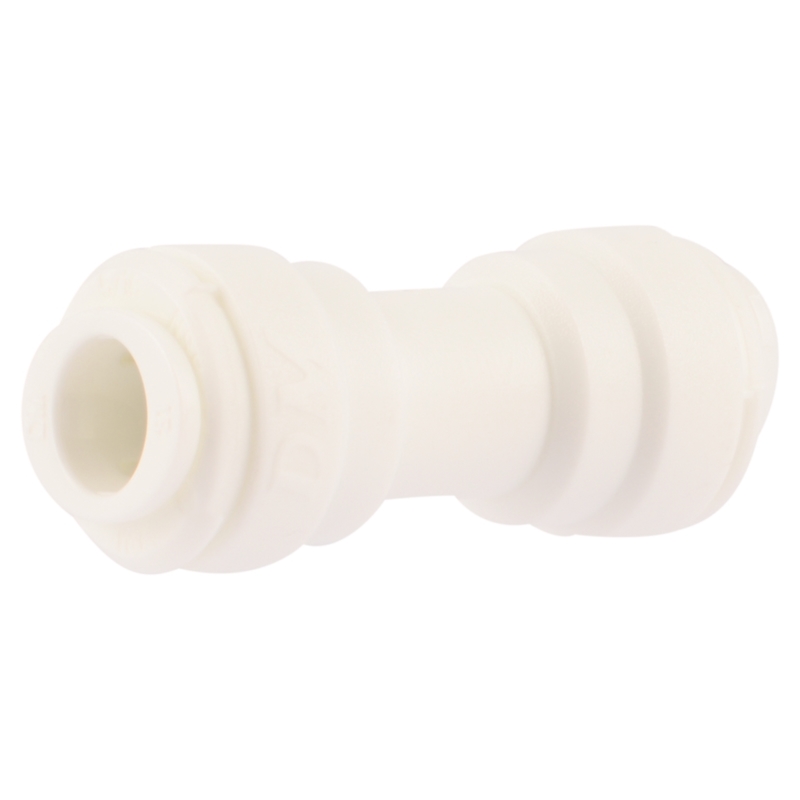

SharkBite Push to Connect 5/16 in. OD X 5/16 in. D PTC Polypropylene Coupling
MPN: 25423
Shop all SHARKBITE
SharkBite Push to Connect 5/16 in. OD X 5/16 in. D PTC Polypropylene Coupling
MPN: 25423
UPC: 697285254237
$6.29
1260 Units Available
Product Overview
SharkBite quick-connect fittings are the fastest way to join multiple materials without the need for additional tools, solder, unions or glue. Compatible with PEX, polyethylene, nylon or soft copper in any combination. These plastic push-to-connect fittings are easy to use and shorten install time. To install, insert the tube into the fitting and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast by pushing down on the collar with two fingers and pulling the tubing outward allowing the fittings and valves to be easily changed and reused.
Specifications
- Material
- Polypropylene
- Brand Name
- SharkBite
- End 1 Type
- OD
- End 2 Type
- PTC
- Product Type
- Coupling
- End 1 Diameter
- 5/16
- End 2 Diameter
- 5/16
- Packaging Type
- Bagged
- Maximum Pressure
- 150 psi
- Number in Package
- 1
- Maximum Temperature
- 140 °F
- Average Lead Content
- Lead-Free
- Weight
- 0.10 lb
- Dimensions
- 0.75 × 2.85 × 6.65 in
Features: ANSI Certified · Push to Connect
