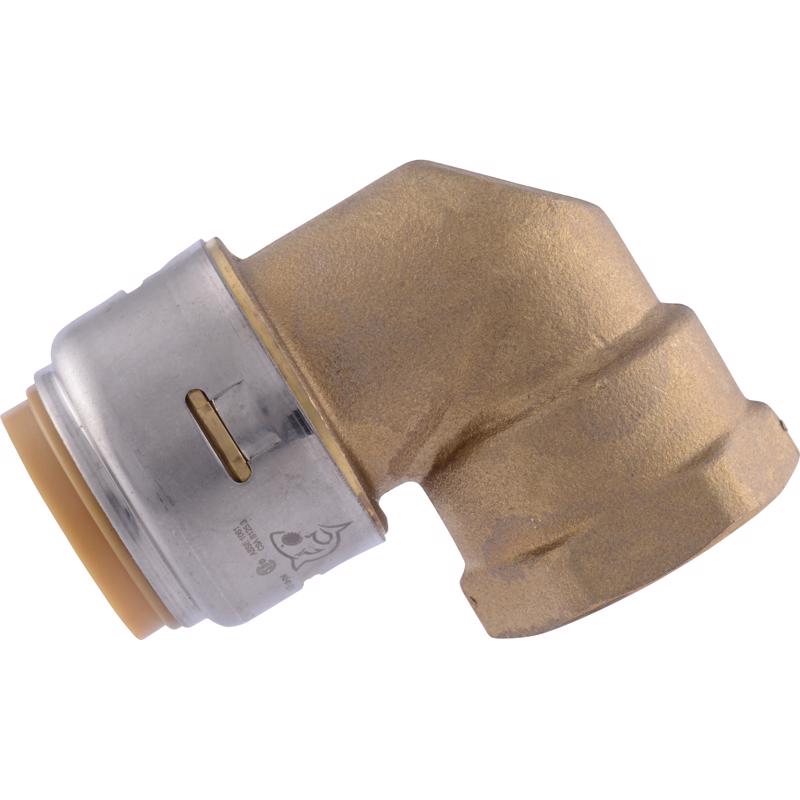

SharkBite Push to Connect 3/4 in. FNPT X 3/4 in. D FNPT Brass 90 Degree Elbow

MPN: UR314A

$15.79

669 Units Available

Product Overview

The 3/4 in. SharkBite Push-to-Connect x 3/4 in. Femlale Pipe Thread Elbow allows you to make a 90 connection to 3/4 in. pipe using a Push-to-Connect connection on 1 end and gives you a 3/4 in. Female NPT Adapter on the opposite end. SharkBite fittings are the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.

Specifications

Material
Brass
Brand Name
SharkBite
End 1 Type
FNPT
End 2 Type
FNPT
Product Type
90 Degree Elbow
End 1 Diameter
3/4
End 2 Diameter
3/4
Packaging Type
Bagged
Maximum Pressure
400 psi
Number in Package
1
Maximum Temperature
200 °F
Average Lead Content
Lead-Free
Weight
0.28 lb
Dimensions
1.35 × 4.15 × 6.45 in

Features: Push to Connect
