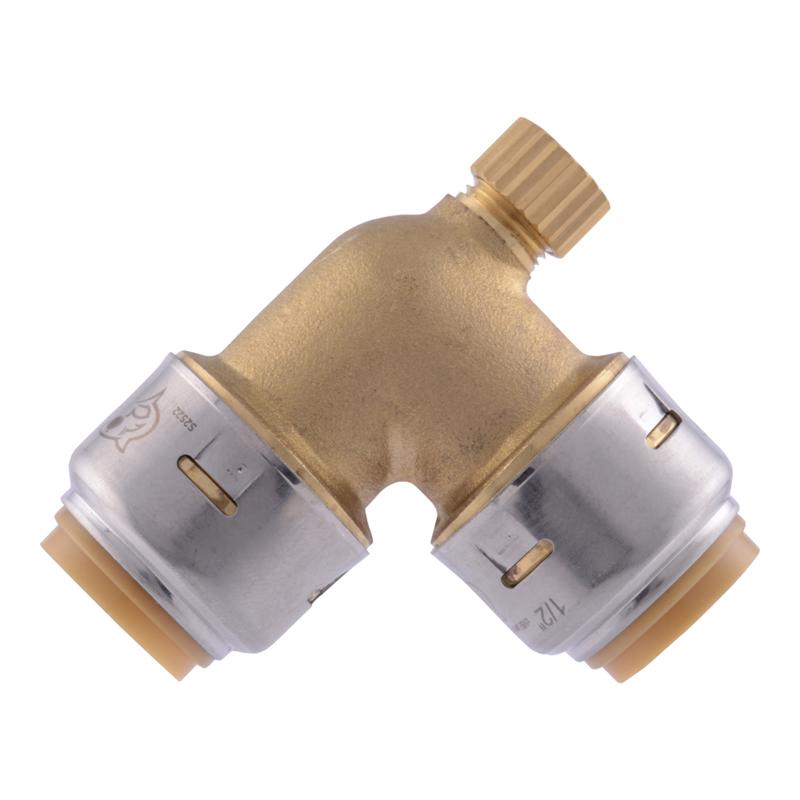

SharkBite 1/2 in. Push-to-Connect X 1/2 in. D Brass 90 Degree Elbow with Drain
MPN: UR5248A
SharkBite 1/2 in. Push-to-Connect X 1/2 in. D Brass 90 Degree Elbow with Drain
MPN: UR5248A
UPC: 697285071933
$13.49
Product Description
The SharkBite 90 degree elbow with drain features a brass construction and a PEX, copper, CPVC, PE-RT and HDPE pipe compatible pipe. This product is supplied as one unit.
You May Also Like
The 1/2 in. SharkBite Push-to-Connect Elbow with Drain allows you to make a 90 Degree connection to any combination of 1/2 in. Copper, CPVC or PEX Pipe. The convenient built in drain allows for draining the line without need to remove fittings. SharkBite fittings are the easiest way to join pipe and do not require soldering, clamps, unions, glue or tools to complete the job. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
Manufacturer description. Product Details are from our verified product data.
| UPC | 697285071933 |
|---|---|
| Manufacturer Part No. | UR5248A |
| Brand | SharkBite |
| Product Type | 90 Degree Elbow with Drain |
| Material | Brass |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT and HDPE pipe |
| Package Quantity | 1 unit |
| End 1 Type | Push-to-Connect |
| End 1 Diameter | 1/2 |
| End 2 Diameter | 1/2 |
| End 3 Diameter | 1/8 |
| Packaging Type | Bagged |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 °F |
| Average Lead Content | Lead-Free |
| Item Weight | 0.15 lb |
| Item Dimensions | 0.97 × 4.38 × 7.00 in |
| Features | ANSI Certified |
