$92.39
304 Packs Available
Product Description

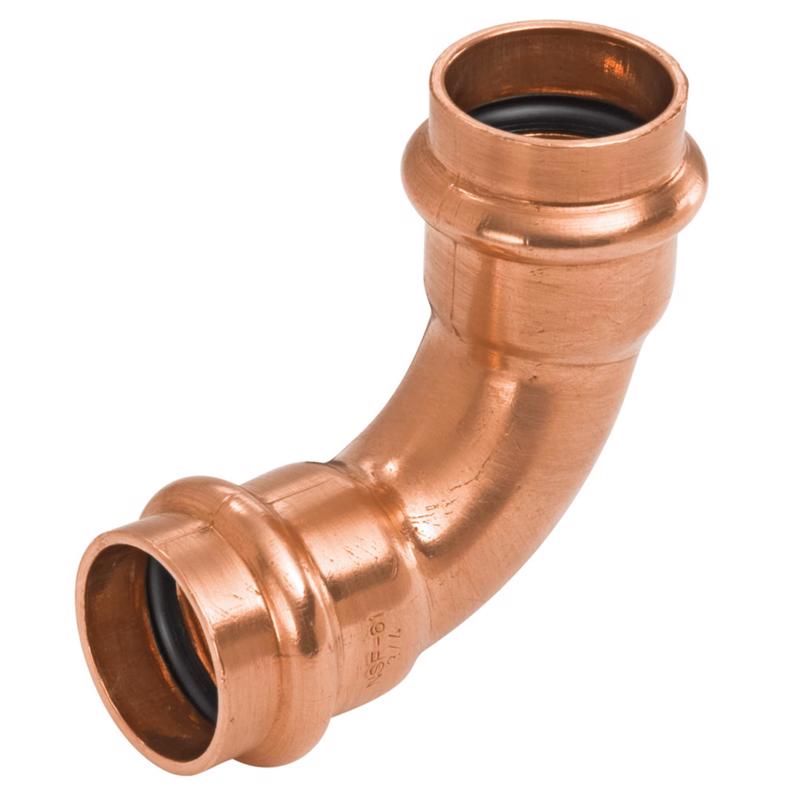

The NIBCO 90 degree elbow features a copper construction. This product is supplied as a pack of 10 90 degree elbows.
You May Also Like
The Nibco Press System copper 90-degree elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 90 degrees.
Manufacturer description. Specifications above are from our verified product data.
| Manufacturer Part No. | 9055751PCCP |
|---|---|
| Brand | NIBCO |
| Product Type | 90 Degree Elbow |
| Material | Copper |
| Package Quantity | 10 90 degree elbows |
| End 1 Type | Press |
| End 2 Type | Press |
| End 1 Diameter | 1 |
| End 2 Diameter | 1 |
| Average Lead Content | Lead-Free |
| Maximum Working Pressure | 200 |
| Maximum Working Temperature | 250 |
| Shipping Weight (complete pack) | 3.54 lb |
| Shipping Dimensions (complete pack) | 6.90 × 4.85 × 6.00 in |
