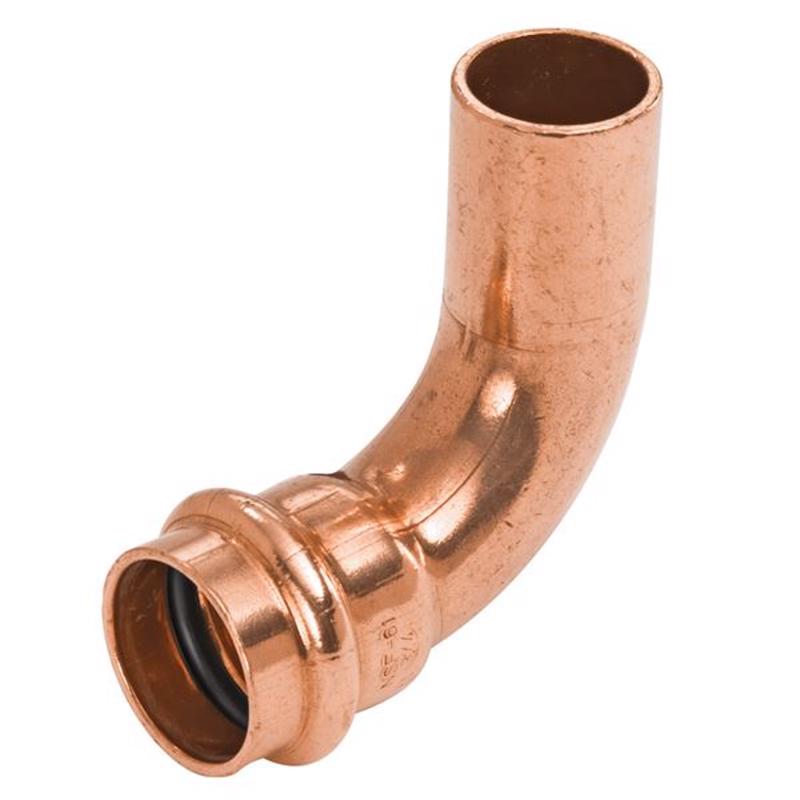

NIBCO 1 in. FTG X 1 in. D Press Wrought Copper 90 Degree Elbow 1 pk
MPN: 9059205PCU
UPC: 039923436993
$16.29
602 Units Available
Product Description
The NIBCO 90 degree elbow features a wrought copper construction. This product is supplied as one unit.
You May Also Like
The Nibco press system copper 90-degree fitting elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has a male fitting end and a press connection. The fitting provides a method of changing the pipeline direction by 90 degrees between a press connection and fitting connection.
Manufacturer description. Specifications above are from our verified product data.
| UPC | 039923436993 |
|---|---|
| Manufacturer Part No. | 9059205PCU |
| Brand | NIBCO |
| Product Type | 90 Degree Elbow |
| Material | Wrought Copper |
| Package Quantity | 1 unit |
| End 1 Type | FTG |
| End 2 Type | Press |
| End 1 Diameter | 1 |
| End 2 Diameter | 1 |
| Average Lead Content | Lead-Free |
| Maximum Working Pressure | 200 |
| Maximum Working Temperature | 250 |
| Item Weight | 0.42 lb |
| Item Dimensions | 1.50 × 5.00 × 6.40 in |
