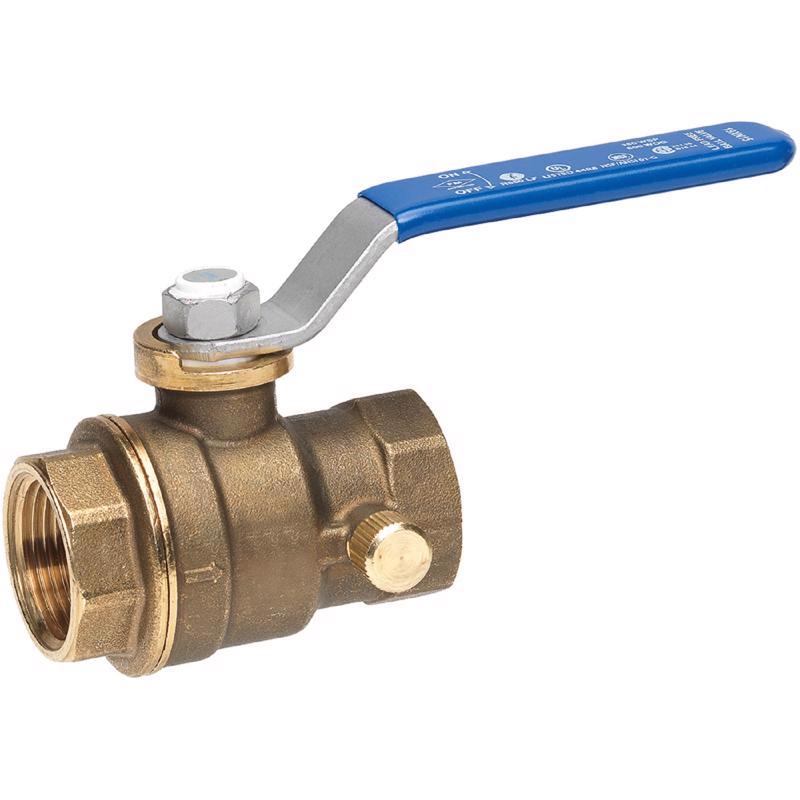

Homewerks 3/4 in. Brass FIP Ball Valve with Drain Full Port Quarter-Turn Lever For Water/Oil/Gas
MPN: 119-2-34
Shop all HOMEWERKS
Homewerks 3/4 in. Brass FIP Ball Valve with Drain Full Port Quarter-Turn Lever For Water/Oil/Gas
MPN: 119-2-34
UPC: 820633982456
$16.49
524 Units Available
Product Overview
The Homewerks full port ball valve is made of high quality forged brass for strength and years of dependable operation in water, oil, air or steam in commercial and residential applications. This ball valve has an added waste function with a side drain cap. When valve is shut off and cap is removed this allows drainage from the non-pressure side. This valve has a corrosion resistant body with quarter turn handle for a quick shut off. Bring quality and efficiency to your project with the Italian made forged brass ball valve with a drain from Homewerks.
Specifications
- Material
- Brass
- Brand Name
- Homewerks
- Port Style
- Full Port
- Application
- Water/Oil/Gas
- Handle Type
- Quarter-Turn Lever
- Product Type
- Ball Valve with Drain
- Compatibility
- Iron Pipe Connections
- Inlet Diameter
- 3/4
- Connection Type
- FIP
- Outlet Diameter
- 3/4
- Maximum Pressure
- 600 psi
- Maximum Temperature
- 300 °F
- Weight
- 0.68 lb
- Dimensions
- 2.60 × 2.15 × 4.90 in
Features: Low-Lead
