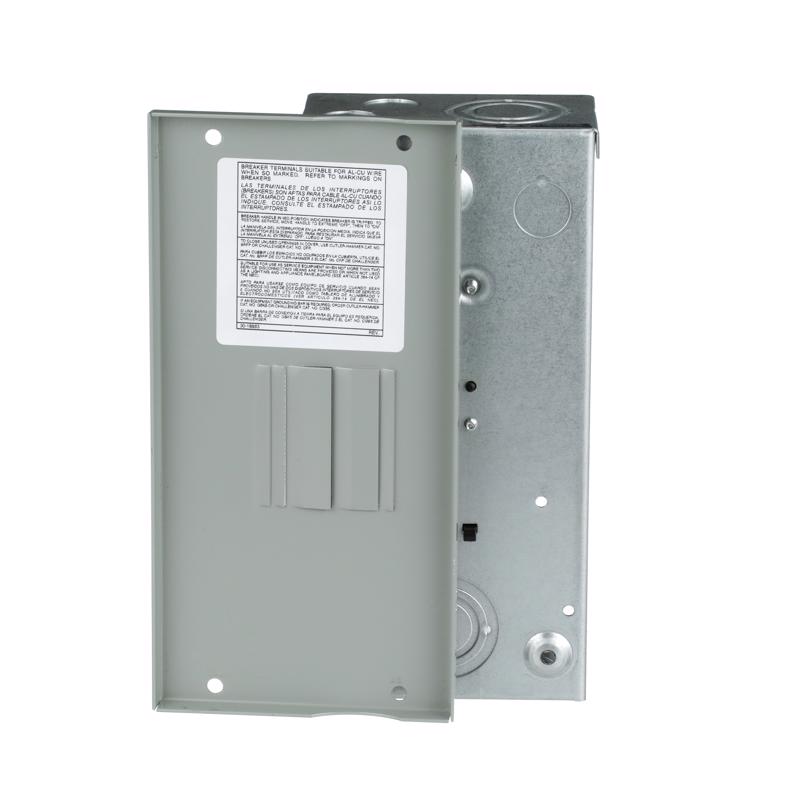

Eaton Cutler-Hammer 70 amps 120/240 V 2 space 4 circuits Surface Mount Main Lug Load Center
MPN: BR24L70SP
Eaton Cutler-Hammer 70 amps 120/240 V 2 space 4 circuits Surface Mount Main Lug Load Center
MPN: BR24L70SP
UPC: 786676001670
$29.69
68 Units Available
Product Overview
Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR24L70SP is a 70 amp main lug with 2 spaces and 4 circuits.
Specifications
- Amps
- 70
- Depth
- 3 in.
- Volts
- 120/240
- Width
- 4-1/2
- Height
- 9-7/16
- Sub Brand
- Cutler-Hammer
- Brand Name
- Eaton
- Product Type
- Main Lug Load Center
- Mounting Type
- Surface Mount
- Packaging Type
- Boxed
- Number of Spaces
- 2
- Indoor or Outdoor
- Indoor
- Circuit Protection Type
- Main Lug
- Maximum Number of Circuits
- 4
- Weight
- 3.80 lb
- Dimensions
- 10.80 × 5.30 × 3.50 in
Features: UL Listed · Breakers Included
