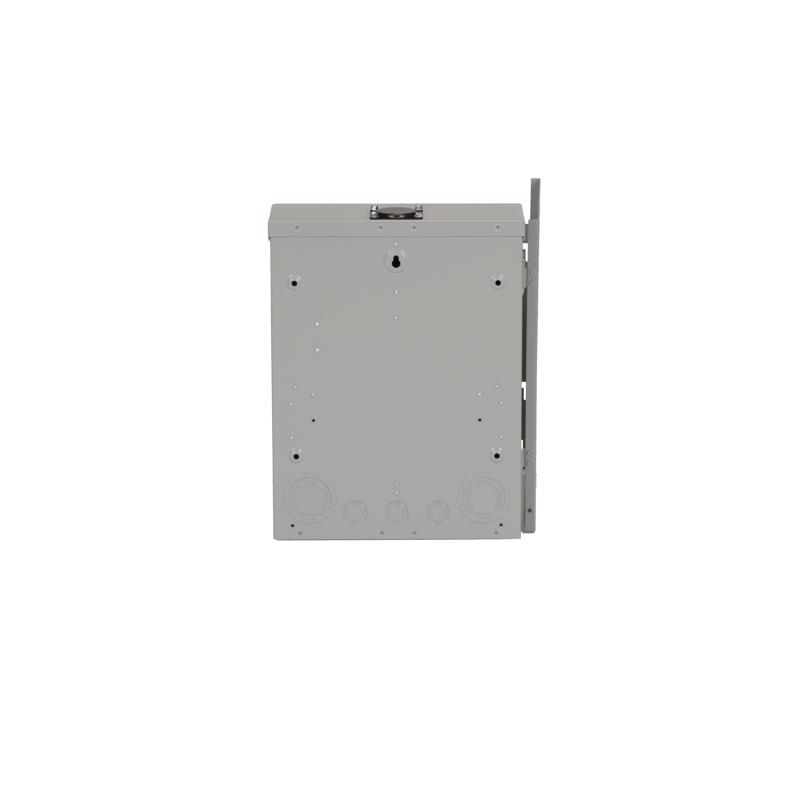

Eaton Cutler-Hammer 100 amps 240 V 10 space 20 circuits Flush Mount Main Breaker Load Center
MPN: BRP10B100RF
Eaton Cutler-Hammer 100 amps 240 V 10 space 20 circuits Flush Mount Main Breaker Load Center
MPN: BRP10B100RF
UPC: 786676443609
$219.59
Free Shipping (contiguous US)
6 Units Available
Product Overview
Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR1020B100RF is a 100 ampere main breaker with 10 spaces and 20 circuits.
Specifications
- Amps
- 100
- Depth
- 5.19 in.
- Volts
- 240
- Width
- 14.31 in.
- Height
- 18.75 in.
- Sub Brand
- Cutler-Hammer
- Brand Name
- Eaton
- Product Type
- Main Breaker Load Center
- Mounting Type
- Flush Mount
- Packaging Type
- Boxed
- Number of Spaces
- 10
- Indoor or Outdoor
- Outdoor
- Circuit Protection Type
- Main Breaker
- Maximum Number of Circuits
- 20
- Weight
- 15.00 lb
- Dimensions
- 3.88 × 14.31 × 18.75 in
Features: UL Listed
