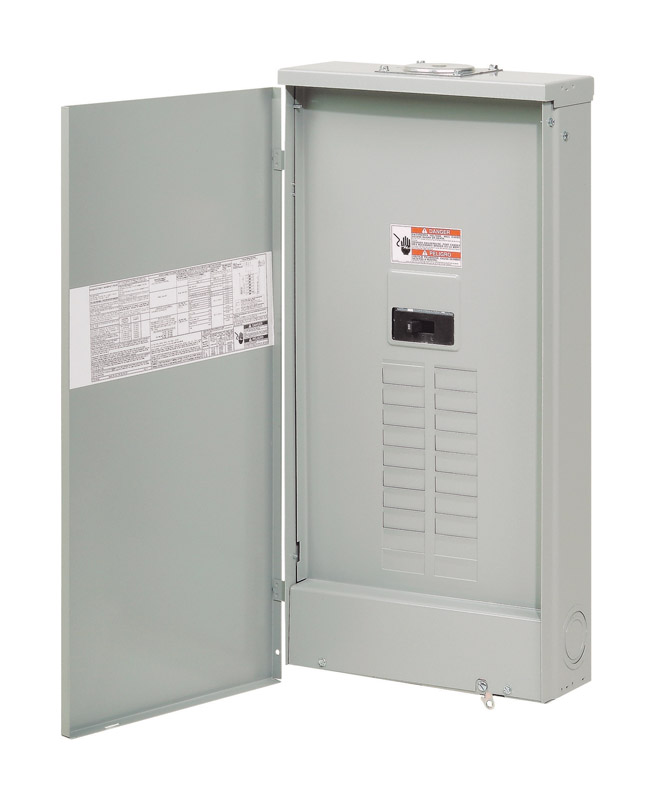

Eaton 200 amps 120/240 V 20 space 40 circuits Surface Mount Main Breaker Load Center
MPN: BRP20B200R
Eaton 200 amps 120/240 V 20 space 40 circuits Surface Mount Main Breaker Load Center
MPN: BRP20B200R
UPC: 786676445757
$410.09
Free Shipping (contiguous US)
21 Units Available
Product Overview
Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR2024L125 is a 125 amp main lug with 20 spaces and 24 circuits.
Specifications
- Amps
- 200
- Depth
- 5-3/16
- Volts
- 120/240
- Width
- 14-5/16
- Height
- 29-1/8
- Brand Name
- Eaton
- Product Type
- Main Breaker Load Center
- Mounting Type
- Surface Mount
- Packaging Type
- Boxed
- Number of Spaces
- 20
- Indoor or Outdoor
- Outdoor
- Circuit Protection Type
- Main Breaker
- Maximum Number of Circuits
- 40
- Weight
- 33.00 lb
- Dimensions
- 31.00 × 15.00 × 7.00 in
Features: UL Listed · Breakers Included
