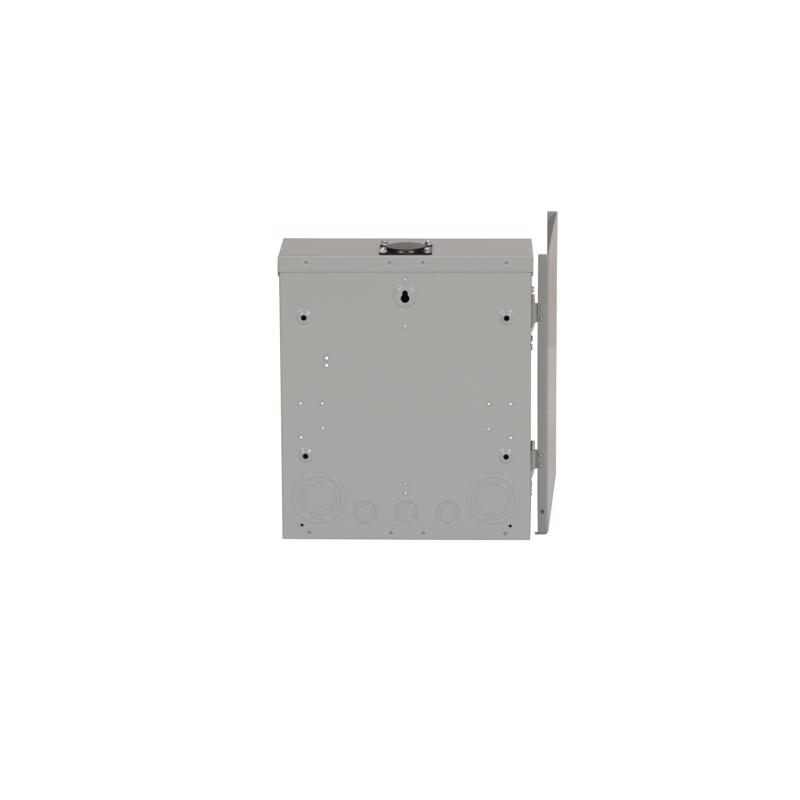

Eaton 125 amps 120/240 V 12 space 24 circuits Surface Mount Main Lug Load Center
MPN: BRP12L125R
Shop all EATON
Eaton 125 amps 120/240 V 12 space 24 circuits Surface Mount Main Lug Load Center
MPN: BRP12L125R
UPC: 786689059156
$133.69
Free Shipping (contiguous US)
8 Units Available
Product Overview
125 ampere main lug load center, outdoor mount, 12 space circuit, 24 single poles, use (DS) hub, ground bar (GBK14P) if required, convertible to main breaker load center by adding BR2100 (100A) Or BR2125 (125A) main breaker (uses 2 full spaces).
Specifications
- Amps
- 125
- Depth
- 5.19 in.
- Volts
- 120/240
- Width
- 14.31 in.
- Height
- 16.75 in.
- Brand Name
- Eaton
- Product Type
- Main Lug Load Center
- Mounting Type
- Surface Mount
- Packaging Type
- Boxed
- Number of Spaces
- 12
- Indoor or Outdoor
- Outdoor
- Circuit Protection Type
- Main Lug
- Maximum Number of Circuits
- 24
- Weight
- 14.00 lb
- Dimensions
- 5.60 × 15.40 × 18.40 in
Features: UL Listed
