Product Description

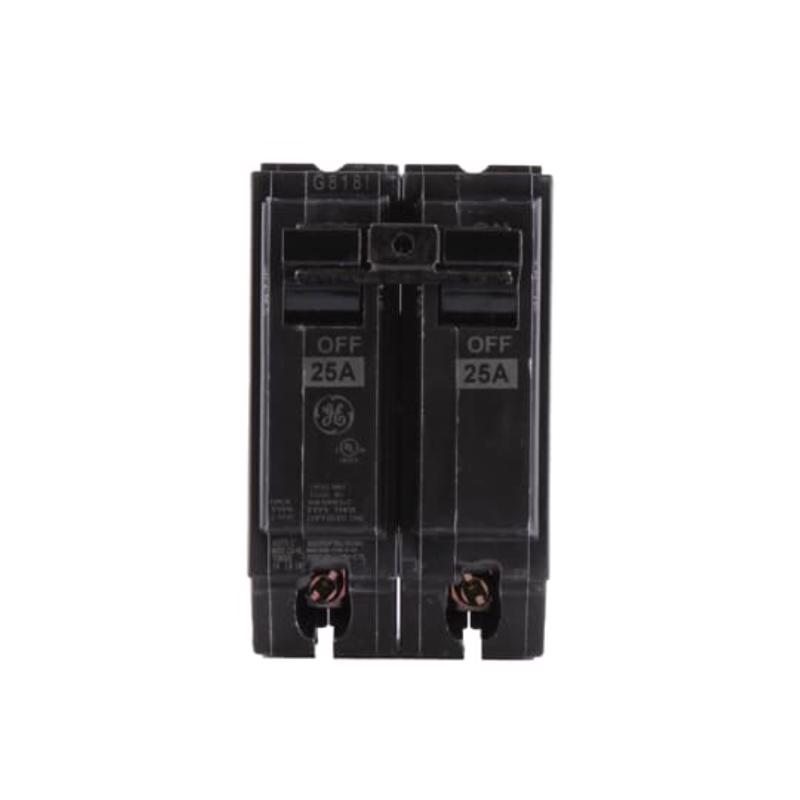

ABB Q Line circuit breaker. This product is supplied as one unit.
You May Also Like
Q Line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications in load centers or lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. The THQL2125 breaker features 2 poles, an ampere rating of 25 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
Manufacturer description. Specifications above are from our verified product data.
| UPC | 783164700411 |
|---|---|
| Manufacturer Part No. | THQL2125A |
| Brand | ABB |
| Range | Q Line |
| Product Type | Circuit Breaker |
| Package Quantity | 1 unit |
| Amps | 25 |
| Depth | 3 in. |
| Volts | 120/240 |
| Width | 3 in. |
| Height | 3.37 in. |
| Mounting Type | Plug-On |
| Packaging Type | Boxed |
| Number of Poles | 2-Pole |
| Number of Spaces | 2 |
| Indoor or Outdoor | Outdoor |
| Circuit Protection Type | Plug In |
| Item Weight | 0.63 lb |
| Item Dimensions | 3.20 × 2.90 × 1.95 in |
| Features | UL Listed · CSA Listed |
